Electric furnace transformers are transformers which supply power to the electric furnaces. It can drop high voltage to the working voltage the electric furnaces need.
There are many kinds of electric furnaces,so there are many kinds of electric furnace transformers cooperating with them.Now,our company manufactures following electric furnace transformers:electric furnace transformers used in steelelectric furnaces(including on-laod,no-load and enclosed reactor) ; mineral hot furnace transforme
There are many kinds of electric furnaces,so there are many kinds of electric furnace transformers cooperating with them.Now,our company manufactures following electric furnace transformers:electric furnace transformers used in steelelectric furnaces(including on-laod,no-load and enclosed reactor) ; mineral hot furnace transforme
40000KVA 35kV Electric Arc Furnace Transformer

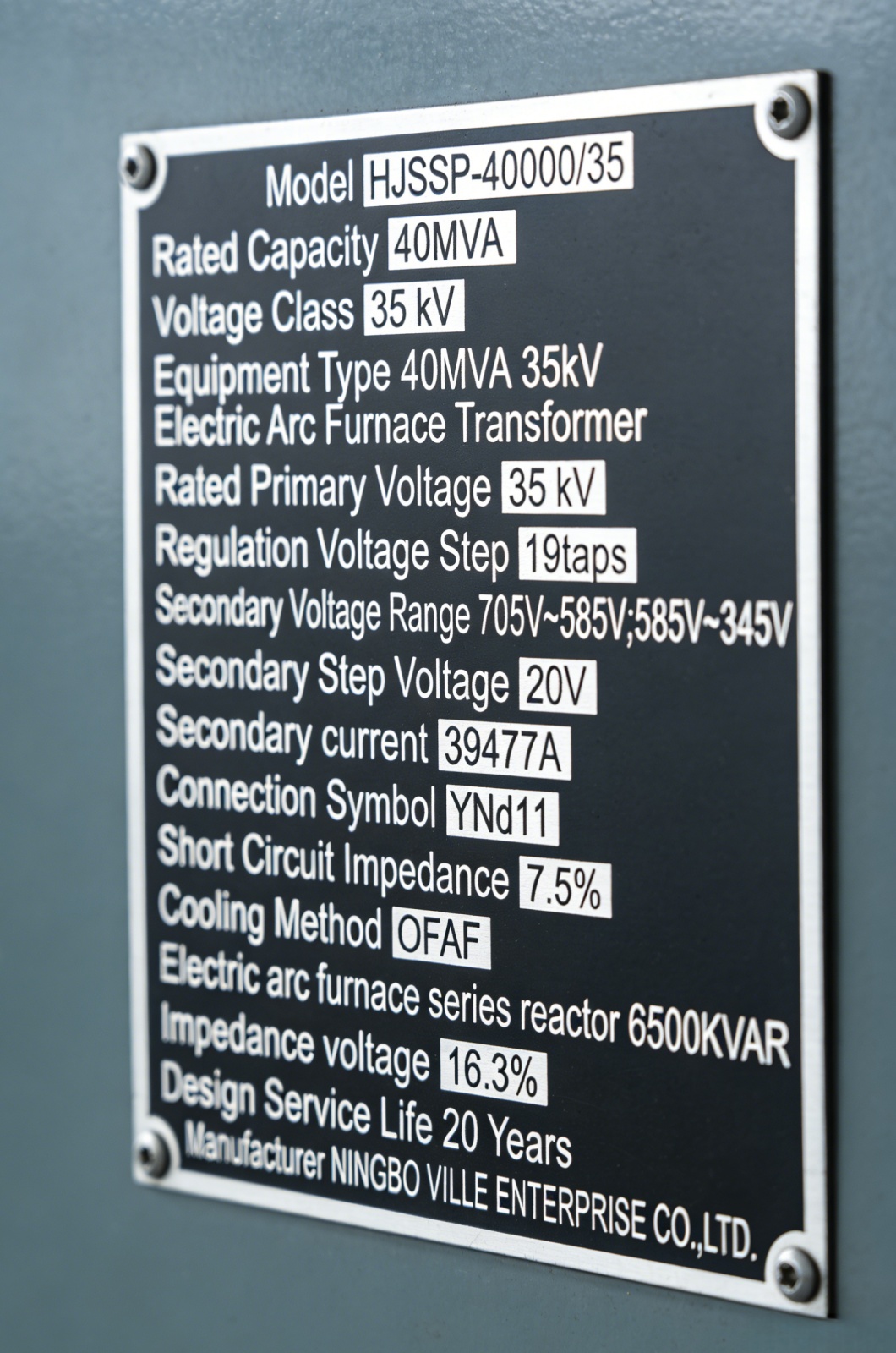

40000KVA 35kV Electric Arc Furnace Transformer Technical Parameter Table
|
Item |
Parameter |
|
Model |
HJSSP-40000/35 |
|
Rated Capacity |
40MVA |
|
Voltage Class |
35 kV |
|
Equipment Type |
40MVA 35kV Electric Arc Furnace Transformer |
|
Rated Primary Voltage |
35 kV |
|
Regulation Voltage Step |
19taps |
|
Secondary Voltage Range |
705V~585V;585V~345V |
|
Secondary Step Voltage |
20V |
|
Secondary current |
39477A |
|
Connection Symbol |
YNd11 |
|
Short Circuit Impedance |
7.5% |
|
Cooling Method |
OFAF |
|
Electric arc furnace series reactor |
6500KVAR |
|
Impedance voltage |
16.3% |
|
Design Service Life |
20 Years |
|
Manufacturer |
NINGBO VILLE ENTERPRISE CO.,LTD. |
| stage | three |
| cooling method | oil-immersed transformer |
| Certification | ISO9001-2000,ISO9001 |
| frequency characteristics | high frequency |
| Brand | Cnville |
| furnace | Steel Works |
| Specification | IEC, CE, ISO |
| Origin | Ningbo, China |
| production capacity | 50000 sets/year |
| Application | Power, Industry |
| core type transformer | |
| winding type | multi-winding transformer |
| Usage | Steel |
| Core Shape | ring. |
| ladle furnace | Lf transformer |
| transport package | accessories wooden case |
| trademark | VILLE |
| HS Code | 8504231100 |
