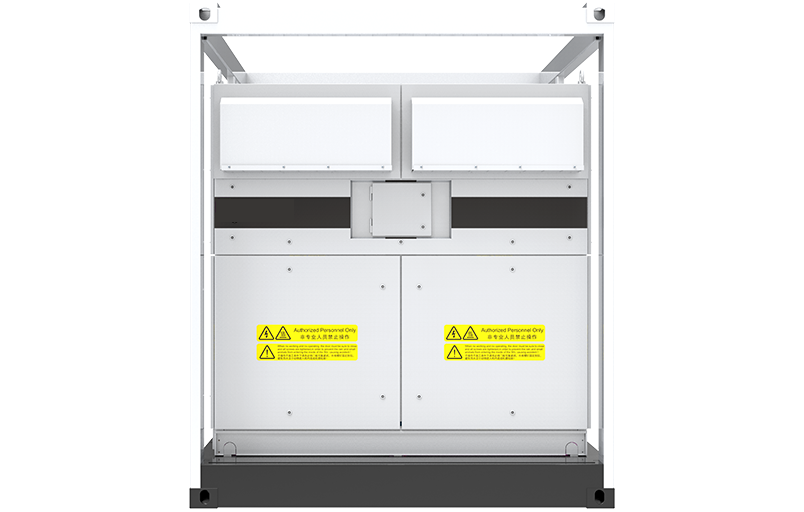

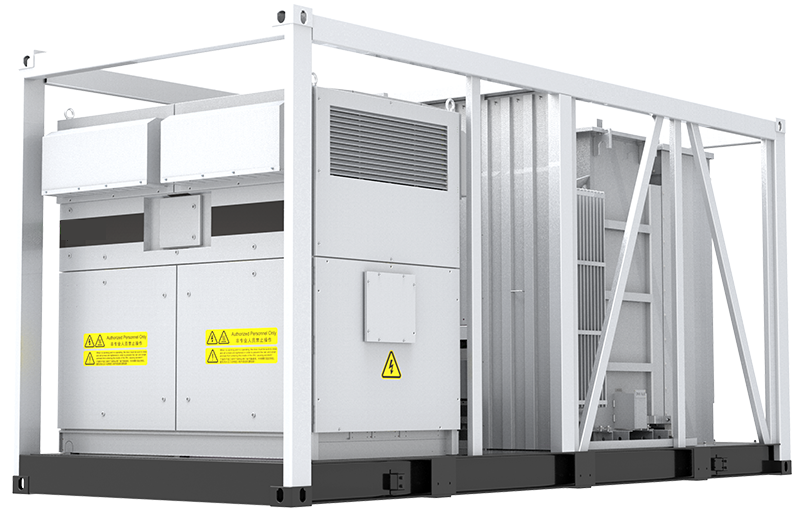

central inverter
EP-3600/3750-HAN-UD/10~35
MV Turnkey Solution 1500 Utility PV Power Plants
EP-3600/3750-HAN-UD/10~35
MV Turnkey Solution 1500 Utility PV Power Plants
Central inverter 3600/3750-han-ud/10~35 MV turnkey solution for 1500V utility photovoltaic power station
Utility-grade PV Solutions
Central inverter 3600/3750-han-ud/10~35 MV turnkey solution for 1500V utility photovoltaic power station
input (AC)
output (DC)
DC input protection load break switch fuse
AC input protection fuse + isolating switch
Transformer
transformer rated power 6250kVA
General data
| Protection Level | NEMA 4X (Electronic Inverter)/ NEMA 3R (Other) | |
| Auxiliary power supply | standard: 5kVA, optional: max. 40kVA | |
| temperature | -30 ~ +60 ℃( >40 ℃ derating) | |
| Allowable humidity (non-condensing) | 0 to 95% | |
| cooling method | temperature control forced air cooling | |
| Maximum working height | 1000 m | |
| Display | LCD | |
| Communication Port | RS485/Ethernet, optional: optical fiber | |
| size (W * H * D) | 6058*2896*2438mm | |
| Weight | 18t | |
