auxiliary power supply standard: 5kVA, optional: max.40kVA
Protection grade IP54
Temperature -30 ~ +60 ℃
Permissible humidity (non-condensing) 0 to 95%
Transformer cooling mode ONAN (oil natural air natural)
Maximum working height 2000m (standard) /@2000m (optional)
Communication port RS485/Ethernet
IEC 60076,IEC 62271,IEC 61439
Dimensions (W * H * D) 6058x2896x2438mm
Weight 22t
Protection grade IP54
Temperature -30 ~ +60 ℃
Permissible humidity (non-condensing) 0 to 95%
Transformer cooling mode ONAN (oil natural air natural)
Maximum working height 2000m (standard) /@2000m (optional)
Communication port RS485/Ethernet
IEC 60076,IEC 62271,IEC 61439
Dimensions (W * H * D) 6058x2896x2438mm
Weight 22t

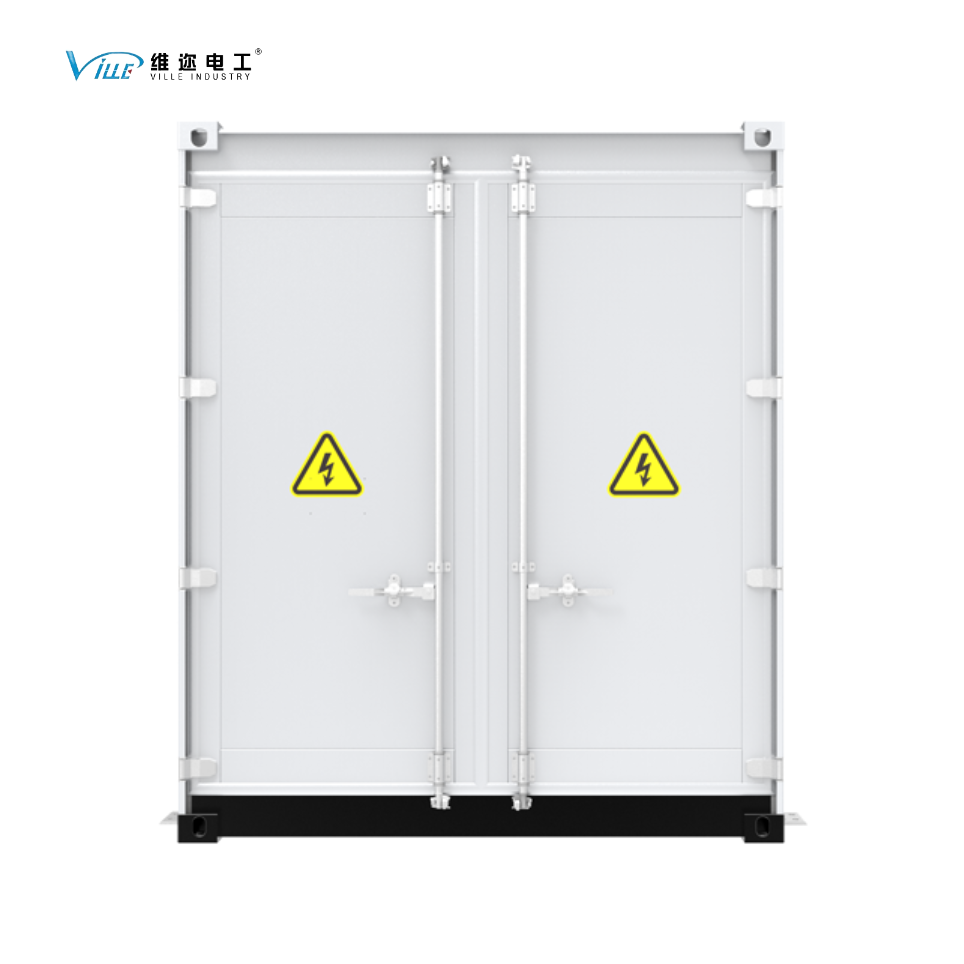

integrated substation (for SP-275K-H1 string inverter)
Utility-grade PV Solutions

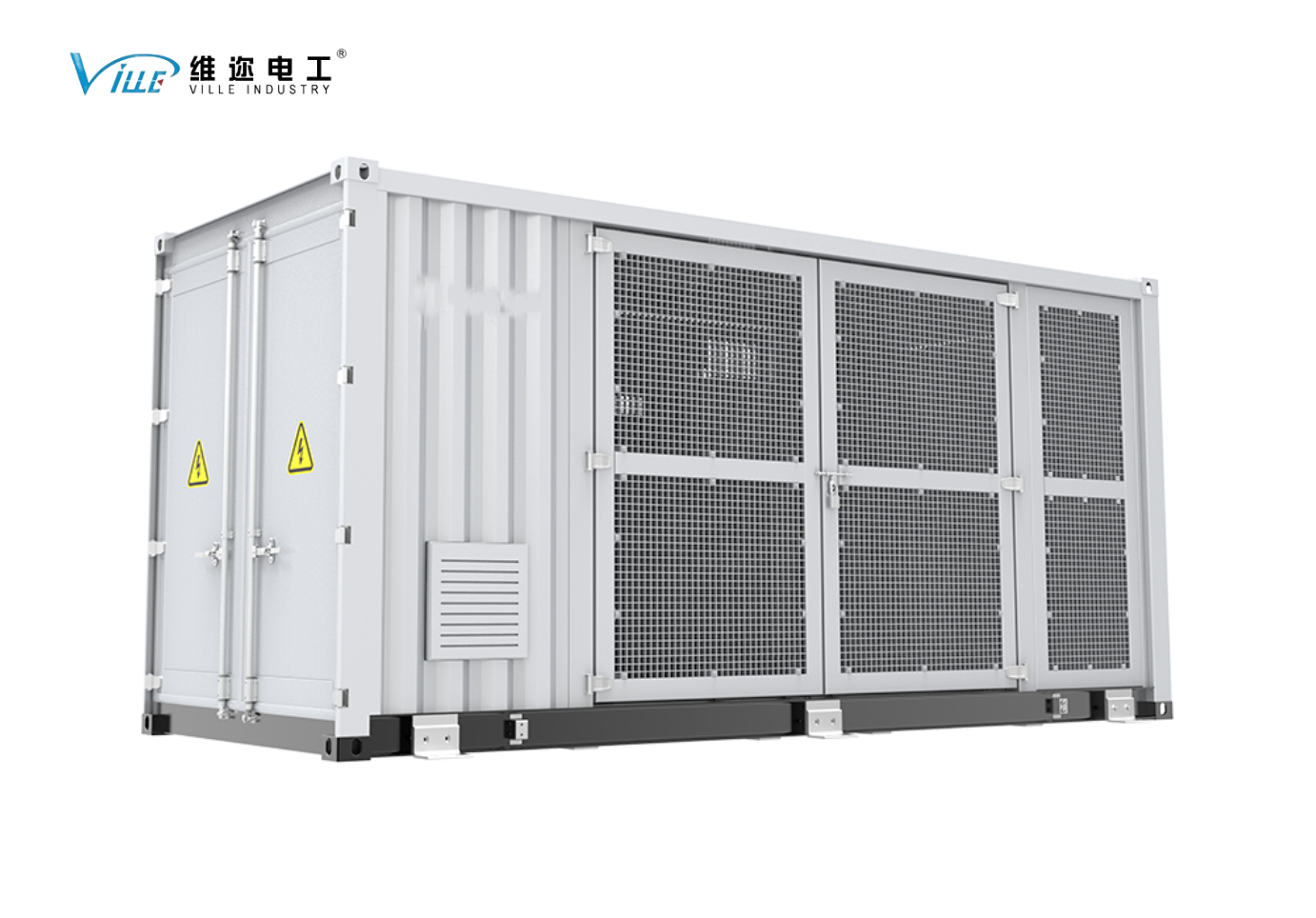

center inverter-integrated substation for 1500V utility photovoltaic power station (for SP-275K-H1 string inverter)
input (AC)
AC output power 6500kVA @ 45 ℃/7150kVA @ 30 ℃
output (DC)
Rated AC output voltage 10-35kv
protection:
AC input protection fuse disconnector
General data
auxiliary power supply standard: 5kVA, optional: max.40kVA
reference:
