Transformer
Rated power of transformer 8960kVA
Transformer maximum power 9856kVA
LV/MV voltage 0.80-0.80/20 ~ 35kV
Vector group Dy11y11
Transformer cooling type ONAN (oil natural air natural)
Rated power of transformer 8960kVA
Transformer maximum power 9856kVA
LV/MV voltage 0.80-0.80/20 ~ 35kV
Vector group Dy11y11
Transformer cooling type ONAN (oil natural air natural)

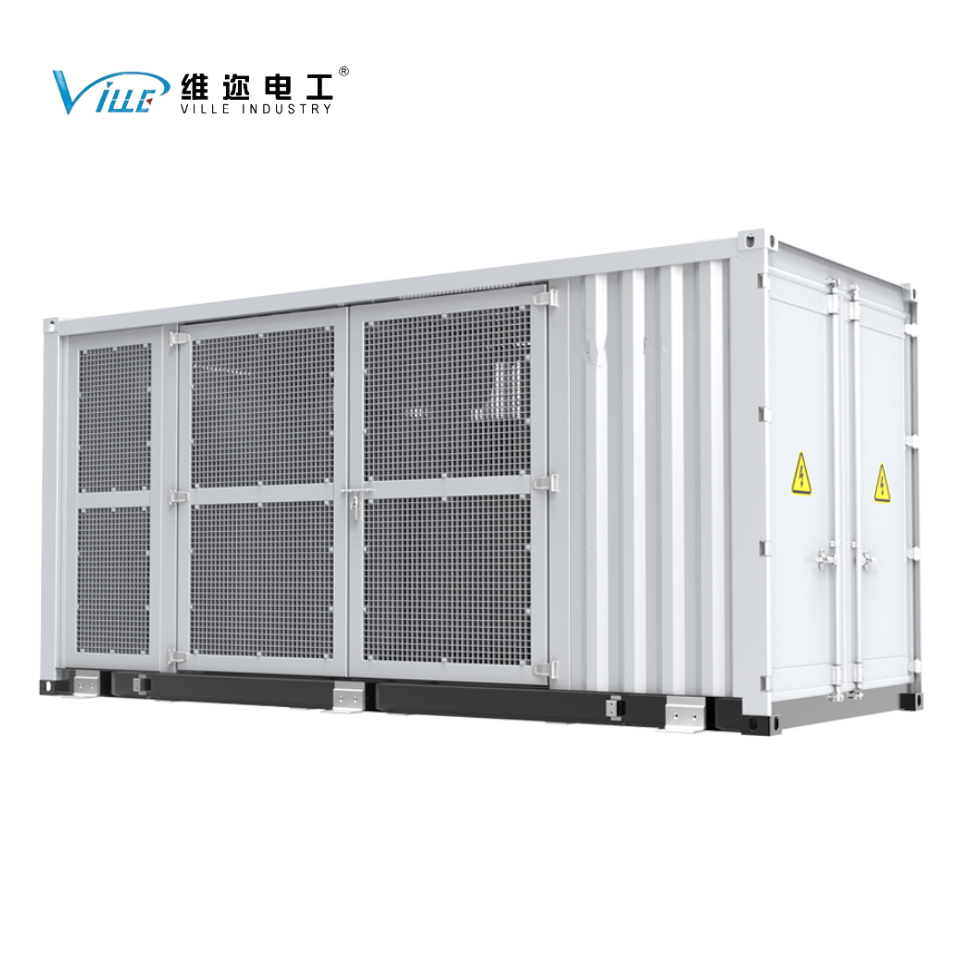

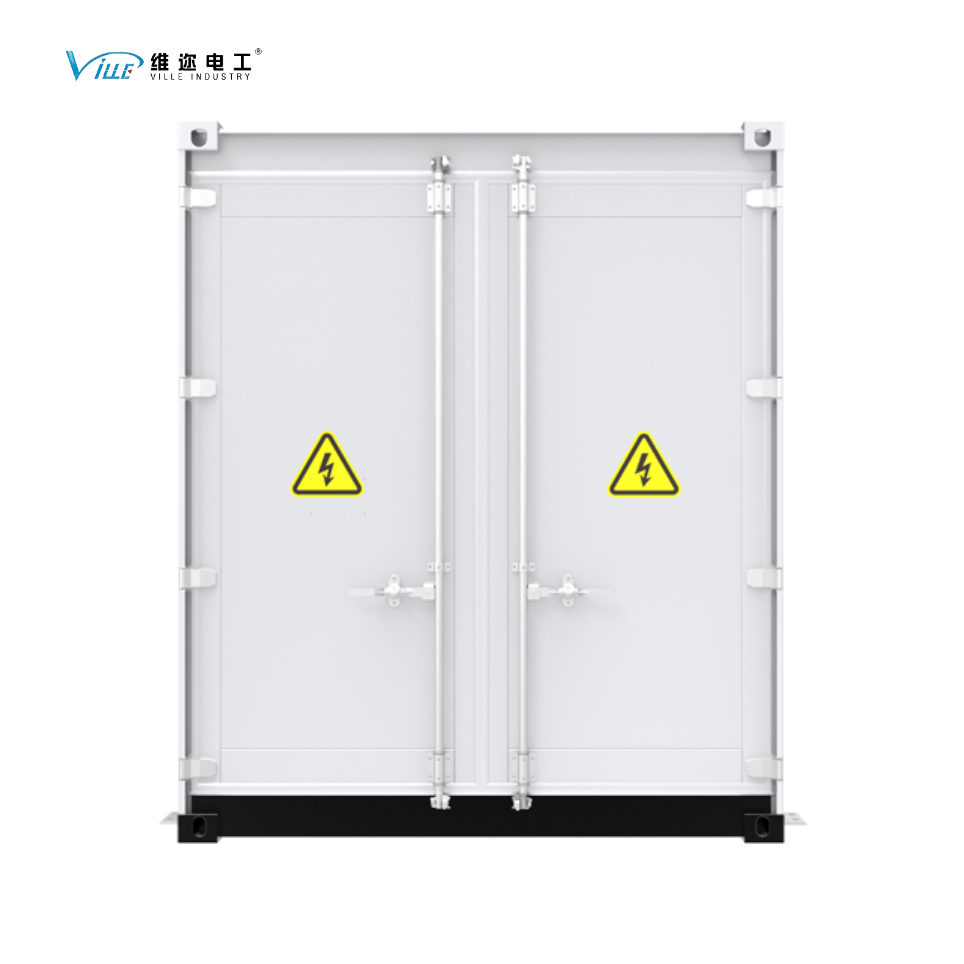

central inverter MV turnkey solution for 1500V utility photovoltaic power station
integrated substation (for SP-350K-H1 string inverter)
input (DC)
AC output power 8960kVA @ 40 ℃/9856kVA @ 30 ℃
output (AC)
| Rated AC output voltage 20-35kv |
|
Transformer
protection:
| AC input protection circuit breaker |
|
efficiency
Maximum efficiency 99.00%
Transformer
transformer rated power 8800kVA
General data:
| Auxiliary power supply | standard: 5kVA, optional: max. 40kVA |
| degree of protection | IP54 |
| temperature | -30 ~ +60 ℃ |
| Allowable humidity (non-condensing) | 0 to 95% |
| Transformer cooling method | ONAN (Oil Natural Air Natural) |
| Maximum working height | 2000 m (standard) />2000 m (optional) |
| Communication Port | RS485/Ethernet |
| certificates (more certificates available on request) | IEC 60076,IEC 62271,IEC 61439 |
| size (W * H * D) | 6058 x2896x2438mm |
| Weight | 24T |
