Technical parameters:
Normal Voltage 36KV 50Hz
Operating Voltage 33 kV ± 10% 50Hz
Oil Pumps Voltage 400V 50Hz 3 Phase
Tap-changer Operating Voltage 115V AC 50Hz
Spacer Heater 220V AC 50 Hz
Lighting 220V AC 50 Hz
Protection Contact Voltage 110V DC
PLC signals 24V DC
TRANSFORMER DATA ±
Operating Voltage 33 KV 10%
Frequency 50Hz ± 1%
Rated capacity 90MVA
Rated primary current 2008A
Insulation Level (AC/LI) 85/200 kV
Normal Voltage 36KV 50Hz
Operating Voltage 33 kV ± 10% 50Hz
Oil Pumps Voltage 400V 50Hz 3 Phase
Tap-changer Operating Voltage 115V AC 50Hz
Spacer Heater 220V AC 50 Hz
Lighting 220V AC 50 Hz
Protection Contact Voltage 110V DC
PLC signals 24V DC
TRANSFORMER DATA ±
Operating Voltage 33 KV 10%
Frequency 50Hz ± 1%
Rated capacity 90MVA
Rated primary current 2008A
Insulation Level (AC/LI) 85/200 kV

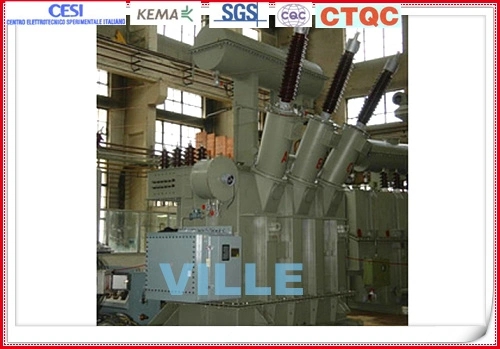

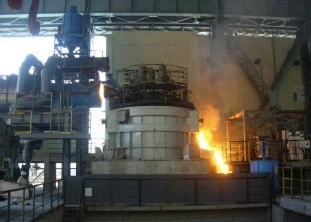

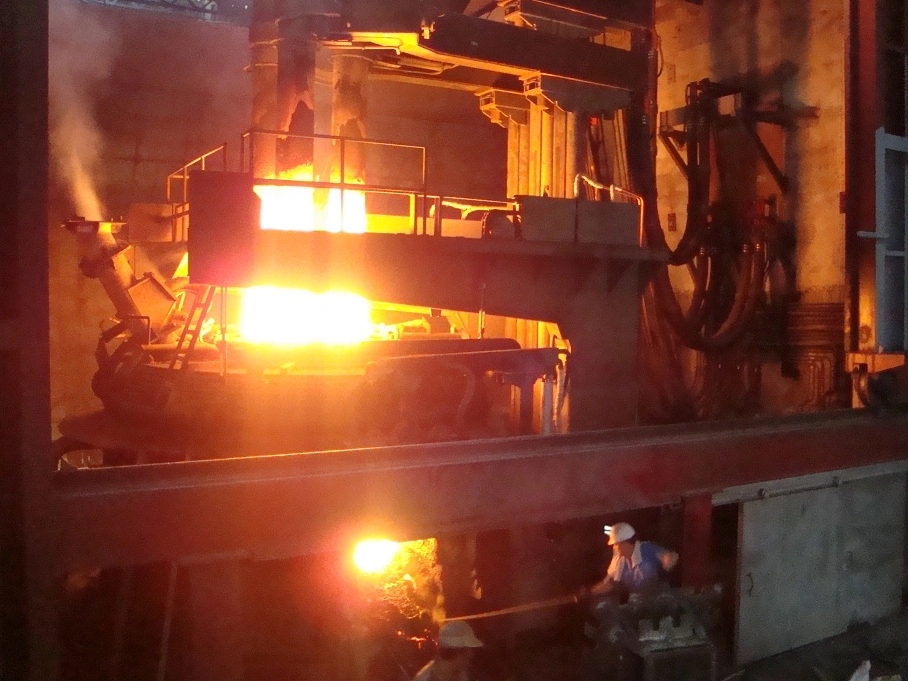

Electric Arc Furnace Transformer 90mva 35kv for Steel Melting Furnace
| Model NO. | HSSPZ-90000/36 |
| Winding Type | Two-winding Transformer |
| Usage | Electric Arc Furnace Transformer for Steel |
| Shape of Core | Ring |
| Operation Voltage | 33kv |
| Rated Primary Current | 2008A |
| Specification | IEC Standard |
| Origin | Ningbo |
| Production Capacity | 200 |
| Cooling Method | Oil-immersed Type Transformer |
| Certification | ISO9001-2000, ISO9001 |
| Frequency Characteristics | High Frequency |
| Brand | Cnville |
| Rated Capacity | 90mva |
| Transport Package | Wooden Case |
| Trademark | Ville |
| HS Code | 85 |
Product & Description
| Package size per unit product | 1.00cm * 1.00cm * 1.00cm |
| Gross weight per unit product | 1.000kg |
Product Description

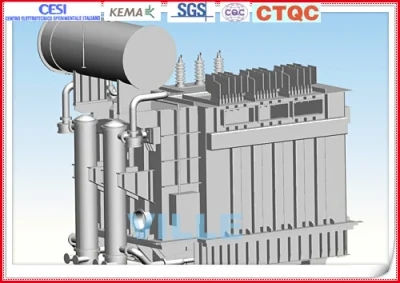

Furnace transformer 120MVA EAF TRANSFORMER
Technical parameters:
Normal Voltage 36KV 50Hz
Operating Voltage 33 kV ± 10% 50Hz
Oil Pumps Voltage 400V 50Hz 3 Phase
Tap-changer Operating Voltage 115V AC 50Hz
Spacer Heater 220V AC 50 Hz
Lighting 220V AC 50 Hz
Protection Contact Voltage 110V DC
PLC signals 24V DC
TRANSFORMER DATA ±
Operating Voltage 33 KV 10%
Frequency 50Hz ± 1%
Rated capacity 90MVA
Rated primary current 2008A
Insulation Level (AC/LI) 85/200 kV
Data sheet:
| Ladle-furnace transformer technical parameters | |||||||||
| Type | Rated power (KVA) |
Rated voltage | Connection symbol | Weight(kg) | Overall dimension (mm) |
Gauge WXN (mm) | |||
| Primary (kv) |
Secondary (v) |
Active part | Oil | Total | |||||
| HJSSP-2400/10 | 2400 | 10 | 200/190/110/104/180 | D-Y d0-11 | 3550 | 2100 | 6800 | 2400x1670x2685 | 1070x1070 |
| HJSSP-2400/11 | 2400 | 11 | 210/196/113/100/173 | D-Y d0-11 | 3700 | 2100 | 6950 | 2400x1670x2685 | 1070x1070 |
| HJSSP-2800/10 | 2800 | 10 | 190/175/160/110/101/92.5 | D-Y d0-11 | 5000 | 2750 | 10000 | 2800x1900x3300 | 1070x1070 |
| HJSSP-3150/10 | 3150 | 10 | 210/195/180/165/150 | Yd11 | 5500 | 3350 | 10400 | 2820x1840x3180 | 1505x1505 |
| HJSSP-3200/35 | 3200 | 35 | 210/195/170/121/112.5/98 | D-Y d0-11 | 6480 | 4130 | 13900 | 3150x1900x3550 | 1505x1505 |
| HJSSP-4000/10 | 4000 | 10 | 210/195/180/155 | Dd0 | 3580 | 4230 | 13370 | 3000x2000x3500 | 1505x1505 |
| HJSSP-5000/10 | 5000 | 10 | 210/195/180/165/121 | D-Y d0-11 | 7080 | 4300 | 14500 | 3000x2000x3750 | 1505x1505 |
| HJSSP-6300/35 | 6300 | 35 | 215/200/185/170/155 | Yd11 | 9500 | 7000 | 19000 | 3700x2200x4500 | 1505x1505 |
| HJSSP-7000/10 | 7000 | 10 | 216/202/188/175/161 | Dd0 | 9800 | 4650 | 17500 | 3600x2200x3600 | 1505x1505 |
| HJSSP-7000/35 | 7000 | 35 | 220/205/191/175/160/145 | Yd11 | 10200 | 7000 | 21600 | 4350x2400x4500 | 1505x1505 |
| HJSSP-10000/10 | 10000 | 10 | 240/210/180/160/139/121 | D-Y d0-11 | 14800 | 10500 | 31500 | 3800x2700x4200 | 1505x1505 |
| HJSSP-12000/35 | 12000 | 35 | 260~150 13 | Yd11 | 15500 | 10000 | 33200 | 4000x2700x4650 | 1505x1505 |
| HJSSP-13000/35 | 13000 | 35 | 240~150 19 | Yd11 | 17200 | 11000 | 36700 | 4300x2900x4500 | 2000x2000 |
| HJSSP-18000/35 | 18000 | 35 | 344~231 13 | Yd11 | 20800 | 12900 | 41200 | 4700x4200x4700 | 2000x2000 |
